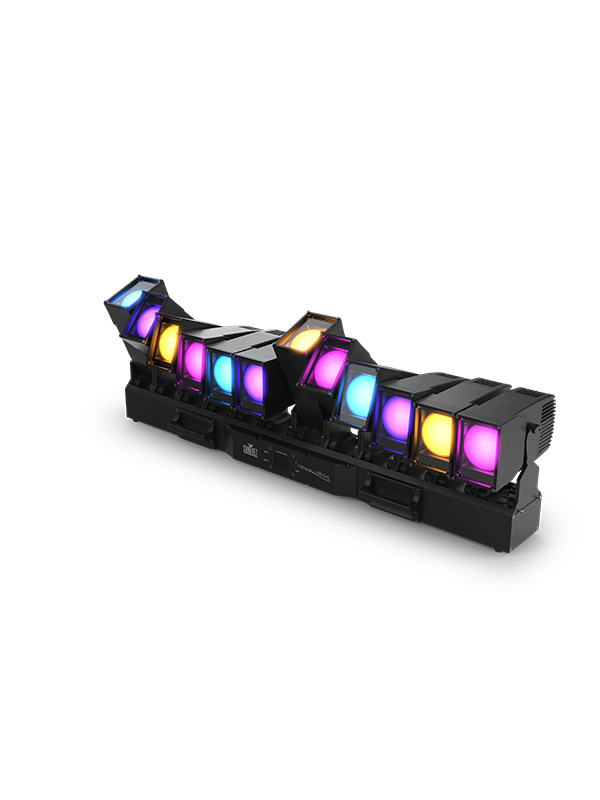

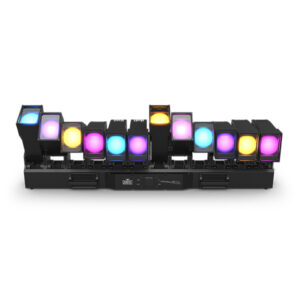

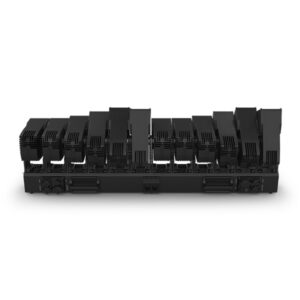

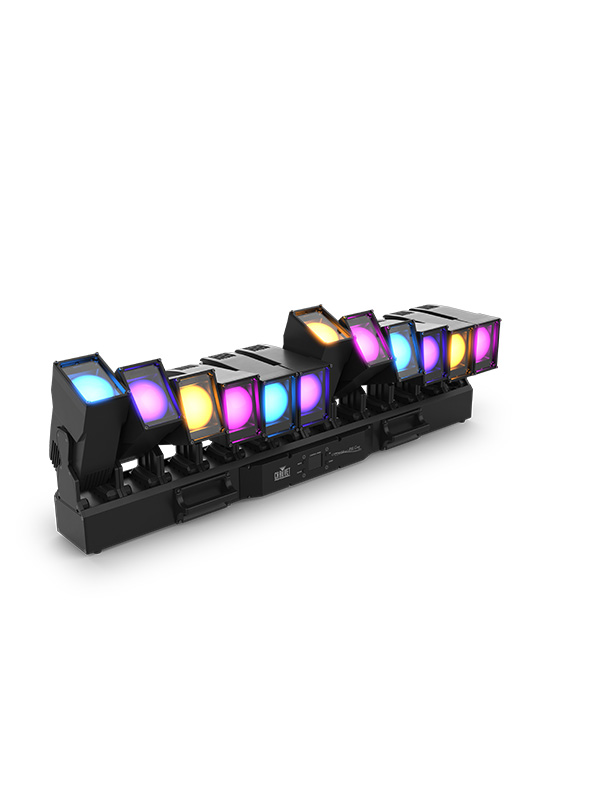

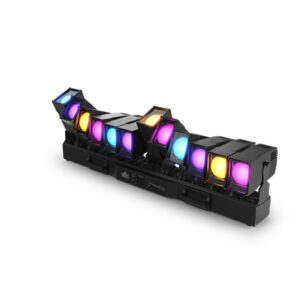

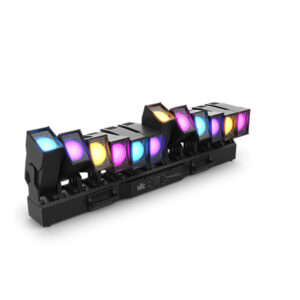

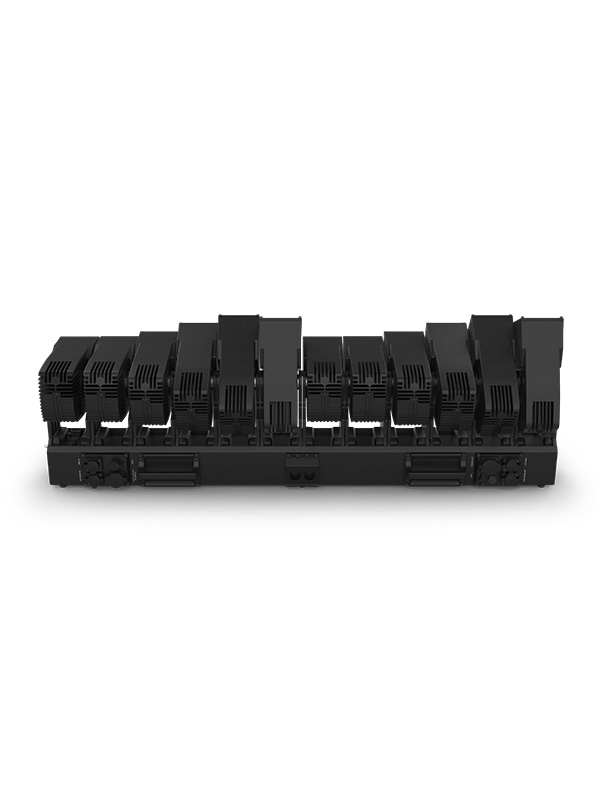

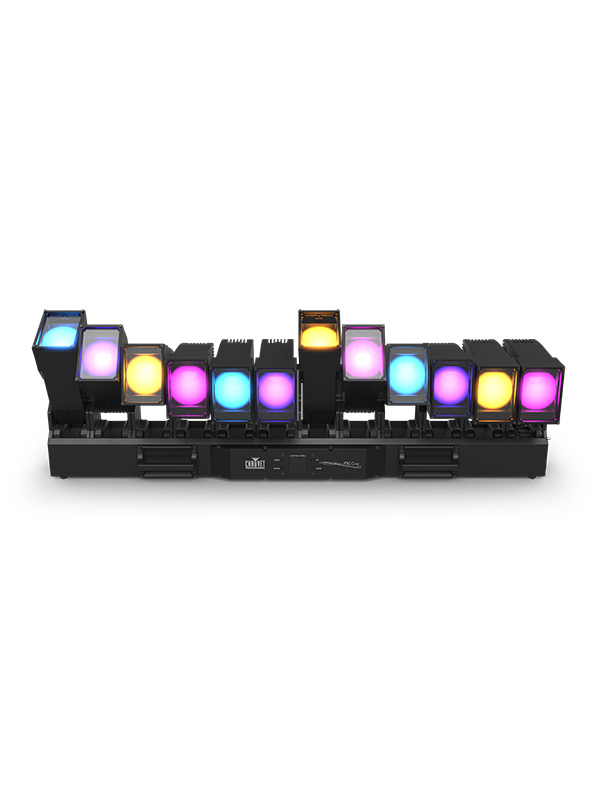

Chauvet COLORado PXL Curve 12 is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures helping to make runway effects consistent. COLORado PXL Curve 12 speaks DMX, sACN, Art-Net, Kling-Net and RDM.

Specifications

IP65 batten with (12) 45W RGBW LEDs. (12) individually controllable tilting heads with a 5.7° to 36.3°zoom range. Maintains pixel pitch between fixtures.
Quiet and quick operation of 200° of tilt of each if (12) heads
Quiet and quick operation of (12) individual zoom zones
Fully pixel mappable
Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects
DMX, SACN, Art-Net, and Kling-Net control for full flexibility
RDM Enabled for remote addressing and trouble shooting
5.7° to 36.3° zoom range for variable beam sizes
TRUE1 compatible power input/output ports
IP65-rated 5 pin DMX and TCP/IP input/output ports
IP65-rated USBc software upload port
Slotted Omega brackets for easy hanging on truss

Gewicht	34,5 kg
Aansluitingen	DMX 5-polig (input), DMX 5-polig (output), PowerCON TRUE1 (input), PowerCON TRUE1 (output)
Aansturing	ART-net, DMX, Kling-net, Manual, Programma (auto), RDM, sACN, Sound
Afmetingen	1003 x 169 x 324 mm
IP Rating	IP65
Lamp type	LED
Stroomverbruik	768 WATT
DMX kanalen	20, 53, 101, 155, 179
Pan & Tilt	Tilt 200 graden
