L-Acoustics LA4X

1x L-Acoustics LA4X versterker
1x 220v stroomkabel (euro)

Sku:GEVE50500

50,00 ex. btw

Vergelijk

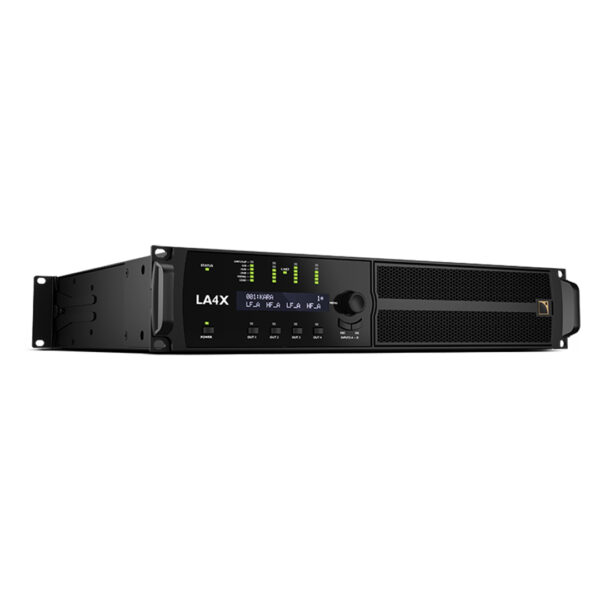

De LA4X is een digitale versterker ontworpen voor diverse L-Acoustics luidsprekers.

vermogen: 4 x 1000w
Gewicht: 11.3kg

Architecture 4 x 4
Output Power 4 x 1000 W at 4 and 8 ohms
Power supply Universal SMPS with PFC
Inputs AVB, AES, Analog
Height 2U
Network Milan-certified

Amplification and power supply

Amplification class Class D
Output power, all channels loaded 4 x 1000 W at 4 ohms
4 x 1000 W at 8 ohms
Power supply model Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
Mains rating 100 V – 240 V ±10%, 50-60 Hz

Audio specifications

Frequency response (20 Hz – 20 kHz, 8 Ω load) ± 0.25 dB
Distortion THD+N (20 Hz – 10 kHz, 8 Ω load) < 0.05 %
Output dynamic range (20 Hz – 20 kHz, 8 Ω, A-weigthed) > 110 dB
Noise level (20 Hz – 20 kHz, 8 Ω, A-weigthed) < -71 dBV
Latency (analog/digital inputs) Standard: 3.84 ms
Low latency: 0.84 ms

DSP

Digital Signal Processor (DSP) SHARC 32-bit, floating point, 96 kHz sampling rate
I/O routing Flexible 4×4 routing matrix
Per output channel Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters
Array morphing, Air absorption compensation filters
Internal IIR and FIR EQ algorithms
L-DRIVE advanced system protection
Output delay from 0 to 1000 ms

Circuits protection

Mains and power supply Over and under voltage / over temperature / overcurrent
Power outputs Overcurrent / short circuit / over temperature

Remote control and monitoring

Network connection Dual-port Ethernet Gigabit interface
L-Acoustics remote control software LA Network Manager
Third-party management solutions QSC® / SNMP / Extron® / Crestron®

Operating conditions

Temperature 0º C / 32º F to +50º C / 122º F

Physical data

Height 2U
Weight 11.3 kg / 24.9 lb
Protection rating IP30
Gewicht 14.5 kg
IP Rating

IP20
