32A krachtstroomverdeler / distro Eurolite SB-1100

Input:
1,5 meter kabel met 32A CEE stekker
2x 16A CEE socket

Output:
1 x 32A CEE socket
6x 16A Schuko stopcontact (2 per fase)

32 A three phase current input via power cable and plug
32 A three phase current output via mounted plug secured on the rearpanel by a Residual Current Device (RCD)
The entire distributor is secured via 30 mA Residual Current Device (RCD)

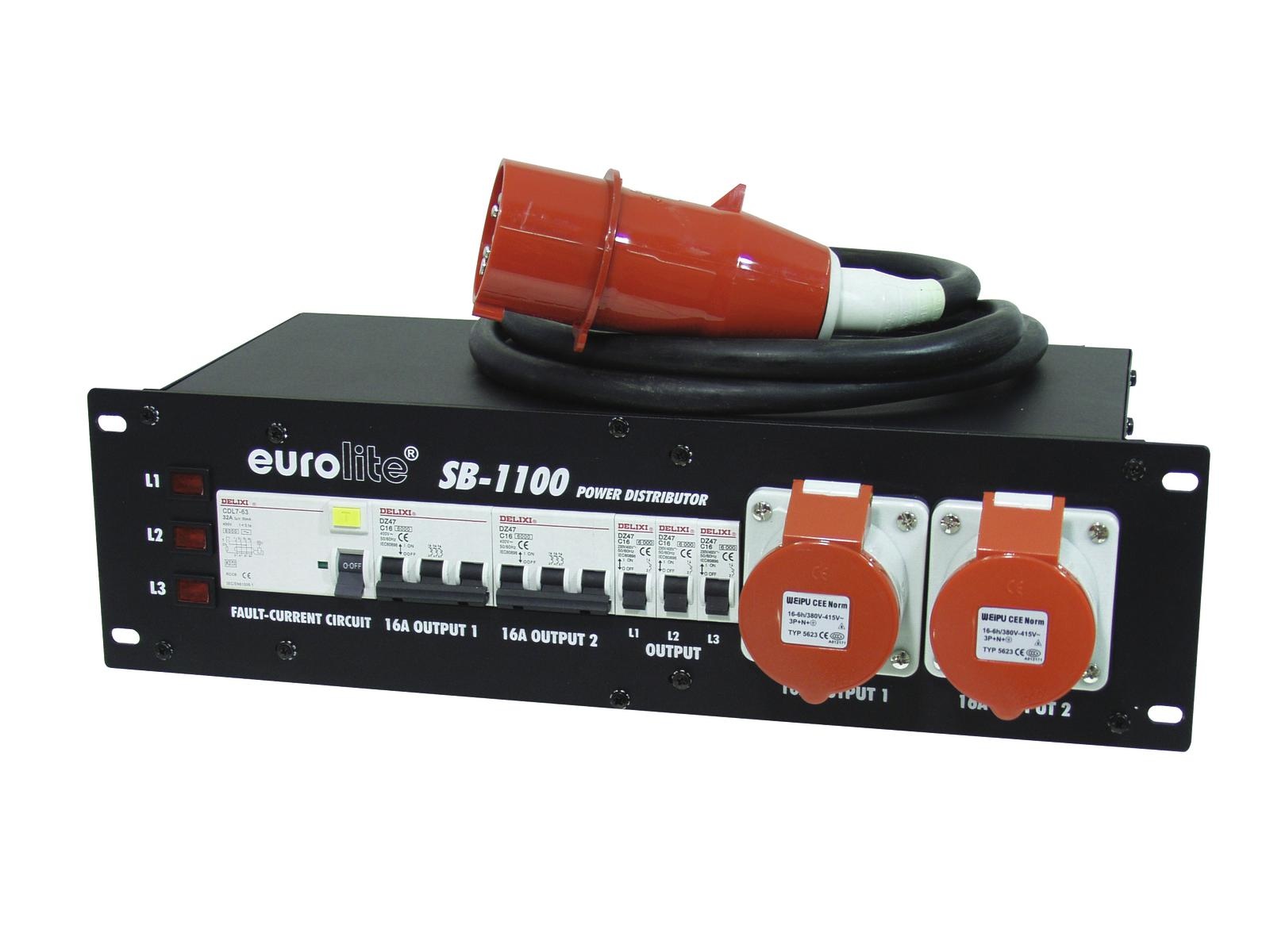

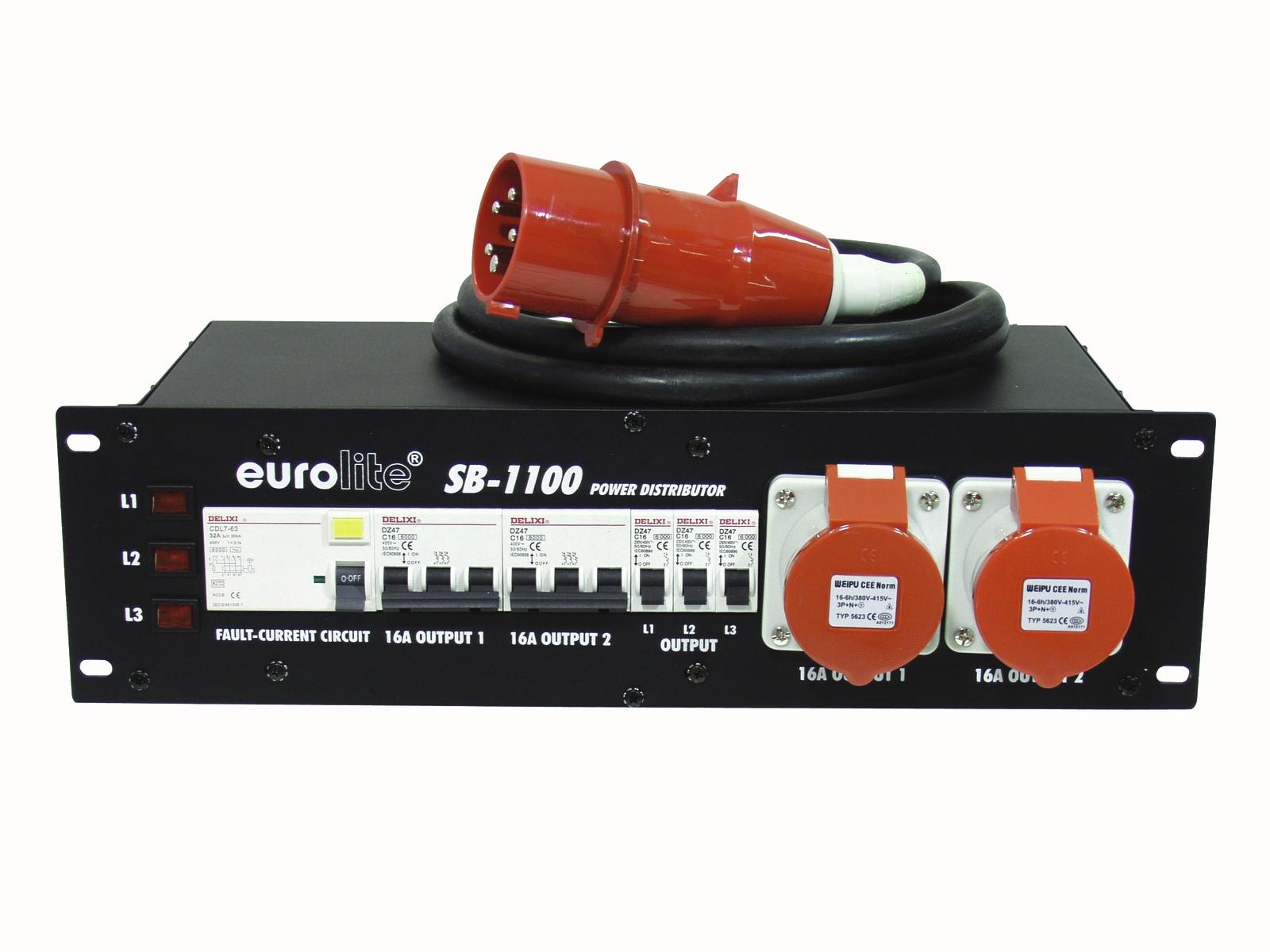

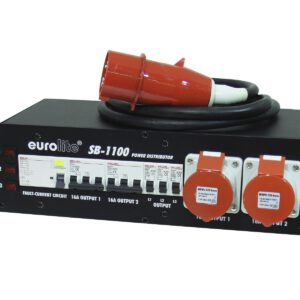

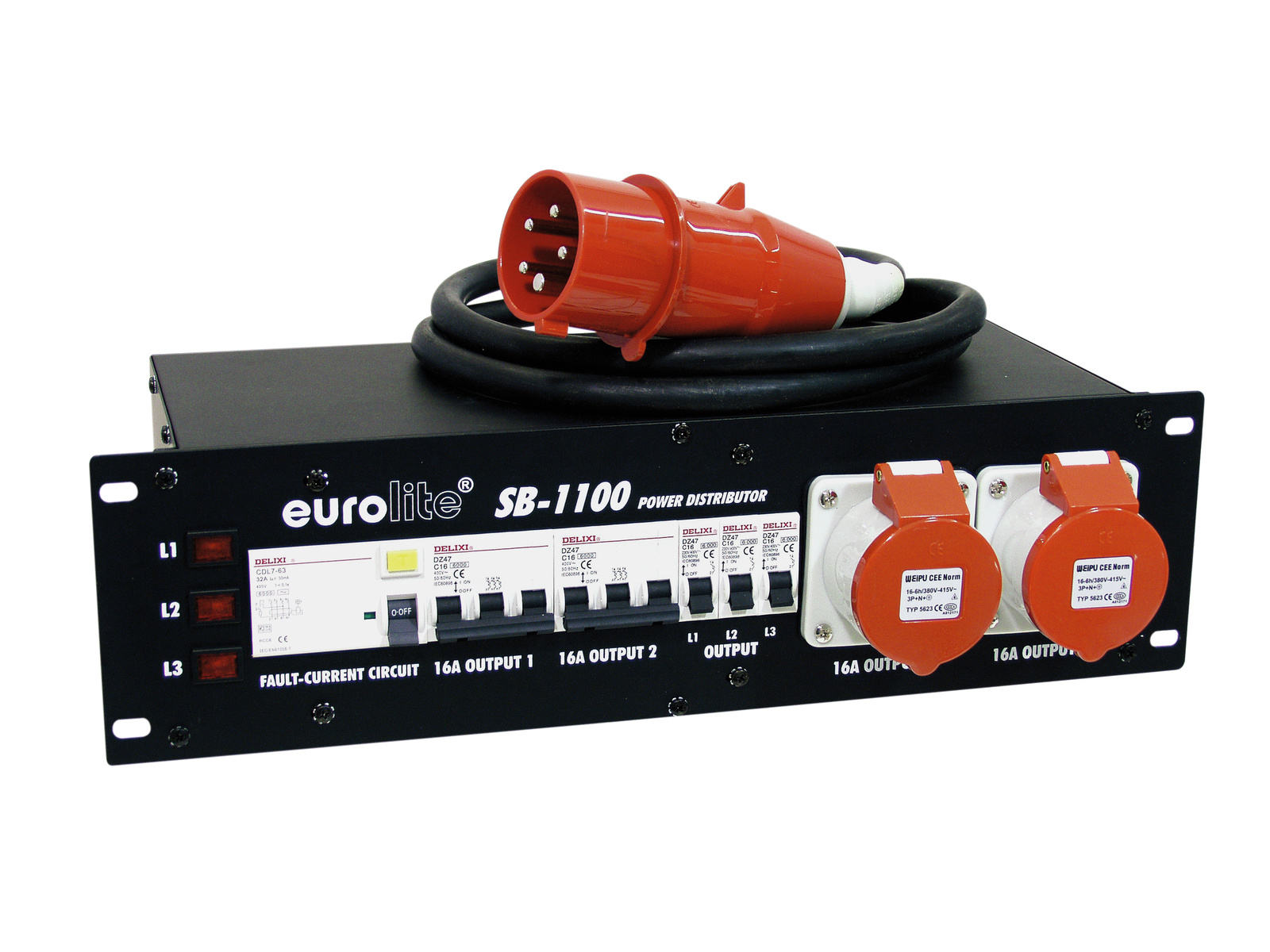

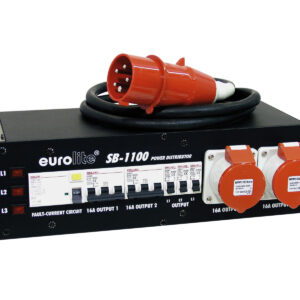

2 mounted CEE sockets with 16 A on the front panel, secured via 3 x 16 A fuse blocks
Control lamps indicate each phase

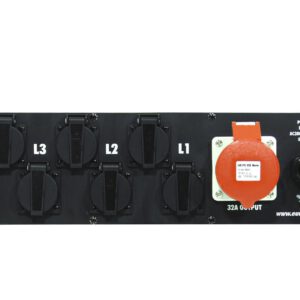

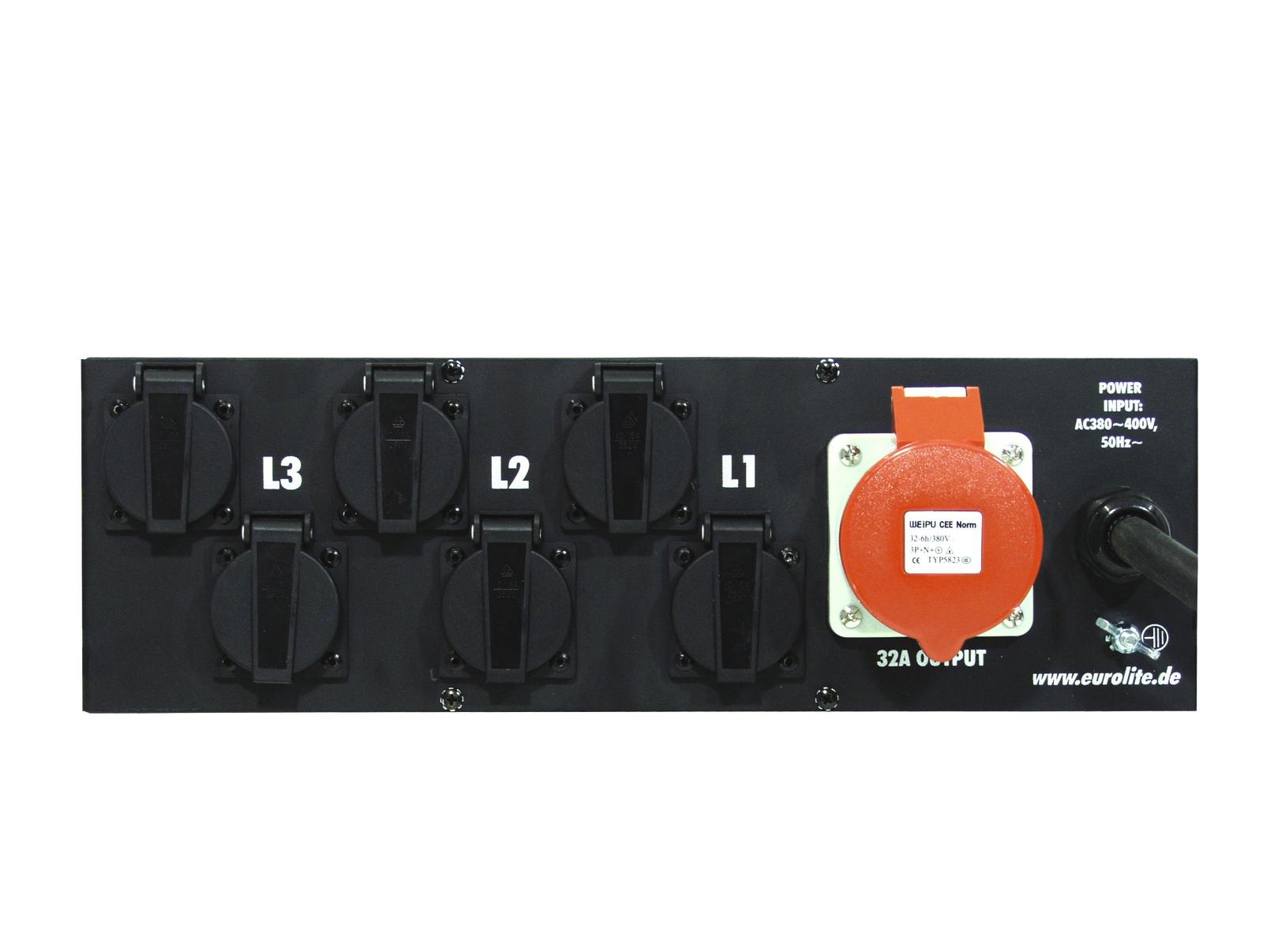

6 safety sockets on the housing back (2 per phase)
Each pair of safety sockets feature fuse protection via 16 A automatic circuit breakers
With M6 earthing screw in order to ground a rigg if necessary
(19″) 48.3 cm rack installation 3 U

Power supply: 380-400V AC, 50Hz
Power output: 1 x CEE 32A 5-pol (f) recessed mounting Bypass
6 x Safety contact (F), hinged lid mounting version fused
2 x CEE 16A 5-pol (f) recessed mounting fused
Protection: 1 x fault-current circuit breaker (FI) 40A/0.03A 4-pol
2 x circuit breaker C 16A 3-pol
3 x circuit breaker C 16A 1-pol
Power connection: Fixed CEE 32A 5-pin (M)
Housing design: (19″) 48.3 cm rack installation 3 U
Dimension: Width: 48.3 cm
Depth: 29.5 cm
Height: 13.35 cm
Weight: 6.05 kg
