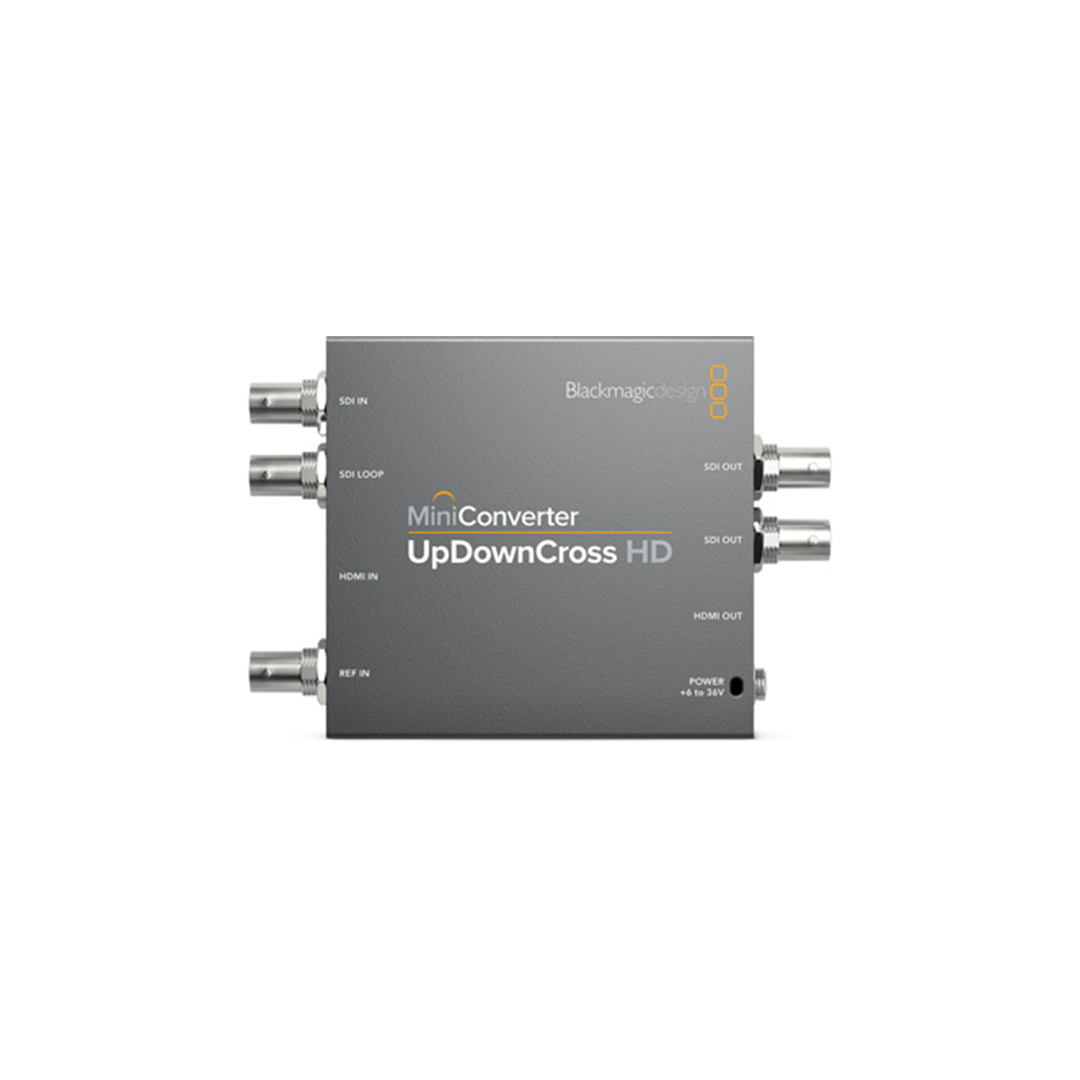

Black Magic Mini Converter UpDownCross HD

1x Black Magic Mini Converter UpDownCross HD
1x Adapter [micro USB] Black Magic Mini Converter

Sku:BEVIRA50320

10,00 ex. btw

Vergelijk

Description

Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format! You get both SDI and HDMI inputs and outputs, along with reference input for built in re‑sync, high quality Teranex conversion algorithms, automatic audio delay for perfect AV sync, international power supply and more!

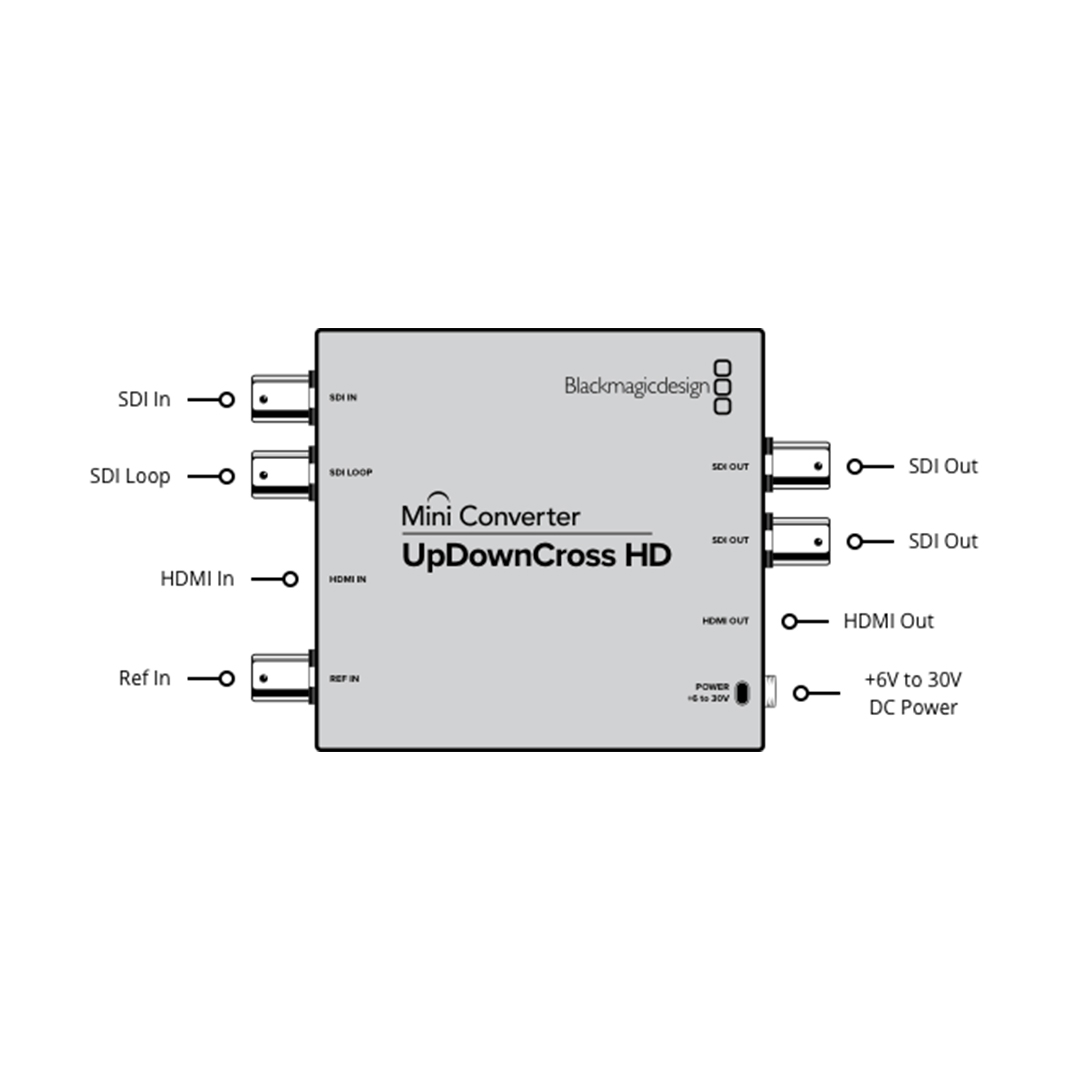

Connections

SDI Video Inputs

1 x SD, HD or 3G‑SDI Video Input and 1 x External Reference Input.

HDMI Video Input

1 x HDMI type A connector.

SDI Video Outputs

1 x loop out and 2 x outputs

HDMI Video Output

HDMI type A out. Output supports EDID of the monitor.

SDI Rates

270Mb, 1.5G, 3G.

Reference Input

Black burst and Tri‑Sync for SD & HD.

Multi Rate Support

Auto detection of HD or standard definition SDI inputs.

Updates and Configuration

USB

Reclocking

Yes

Mini Converter UpDownCross HD

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

HDMI Input Video Standards

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, ITU‑R BT.656 and ITU‑R BT.601.

SDI Metadata Support

Timecode and closed captioning.

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2

SDI Color Space

YUV

SDI Auto Switching

Automatically detects SD, HD or 3G‑SDI.

Format Conversion

Video Conversion

Convert any SD and HD input to “720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60”

Computer Scaling

Scale DVI resolutions 640×480, 800×600, 1024×768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

Software

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac iconMac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows IconWindows 8.1 and 10.

Settings Control

Mini Switches

Power Requirements

Power Supply

+12V universal power supply included with international socket adapters for all countries.

Power Consumption

5W

Operational Voltage Range

6 to 36 Vdc.

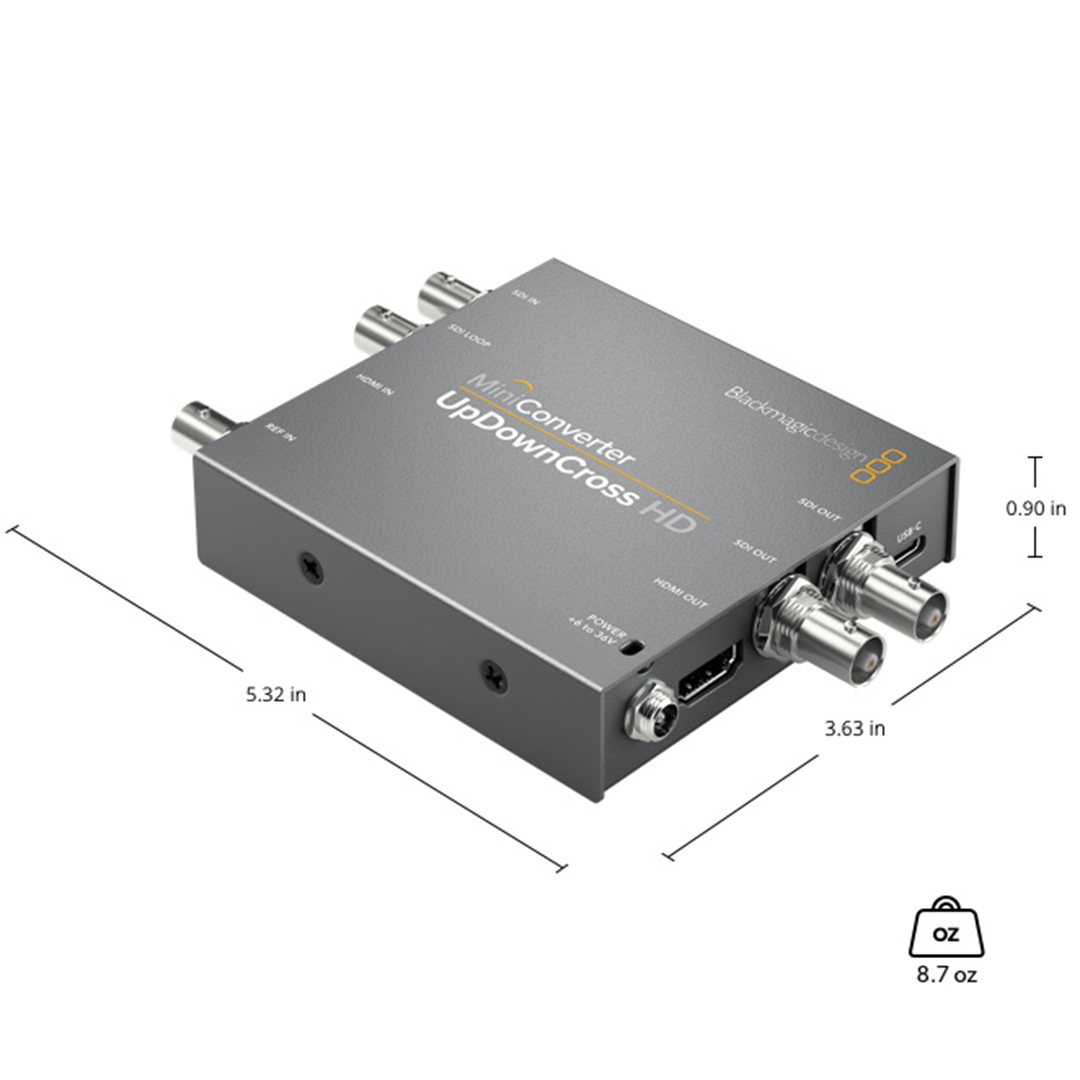

Physical Specifications

Mini Converter UpDownCross HD

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing

Gewicht1 kg
